The optical unit, lens, and circuit board have all been redesigned to achieve the world’s smallest native 4K projector.

The DLA-NZ700/NZ500/RS2200/RS1200 has a dimension reduction of 35% compared to the previous DLA-NZ7/RS2100, while still incorporating a laser light source and native 4K D-ILA device.

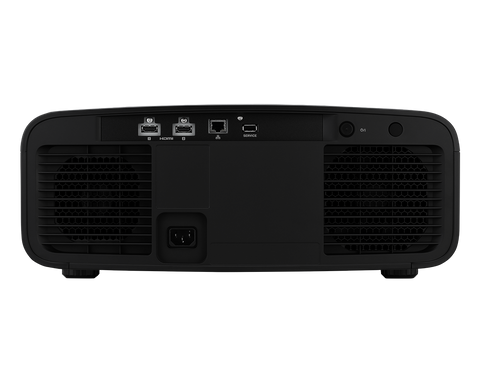

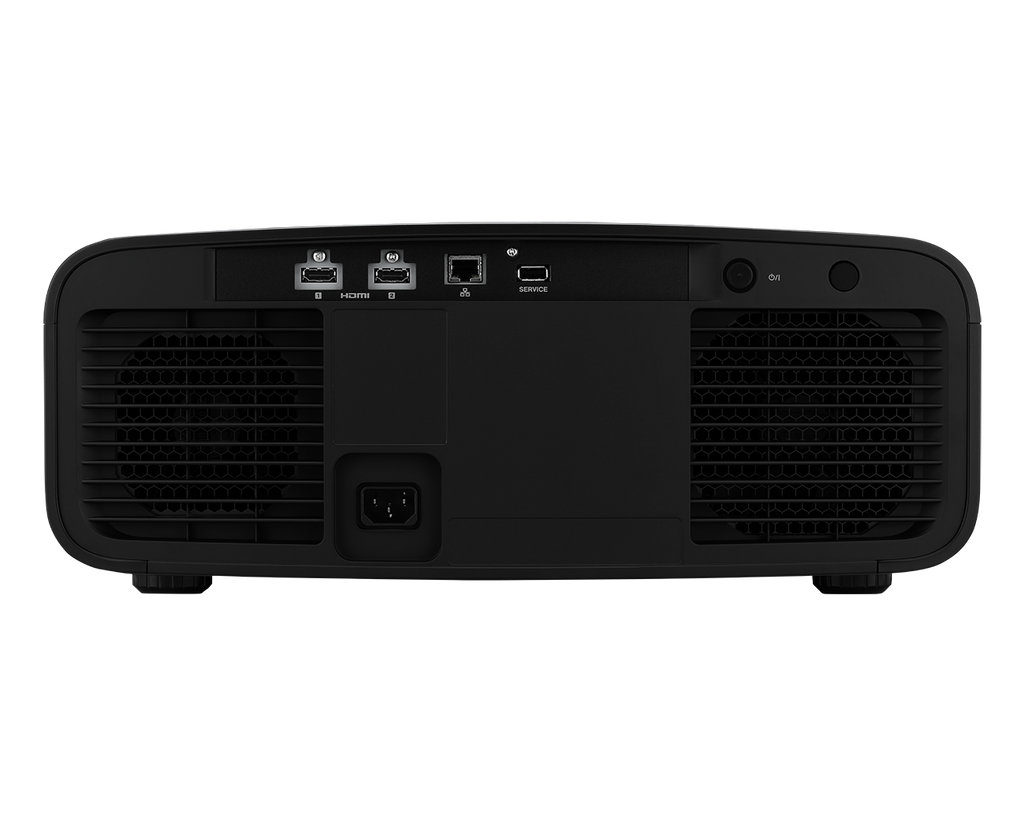

By placing the heat source exhaust at the rear, the potential impact of the image on the projection screen has been eliminated. This provides more flexibility for installation.

The design of the new projector models uses significantly less plastic, which also reduces transportation costs. This leads to a product that is much more environmentally friendly.

Our proprietary 0.69-inch native 4K D-ILA device has been advanced to further enhance black details.　

The DLA-NZ700/RS2200 achieves 80,000:1* native contrast by simultaneously improving alignment control and pixel flatness. *: 40,000:1 for 'DLA-NZ500/RS1200'

The Manufacturing process has improved the uniformity of brightness across the entire screen, with beautiful image quality in every corner.

JVC’s proprietary laser light source technology, Blu-Escent, uses a blue laser diode as the light source. The DLA-RS2200 achieves a high brightness of 2,300lm and the DLA-RS1200 2,000lm. Both models have a laser life expectancy of approximately 20,000 hours.

BLU-Escent Laser can finely adjust the luminance according to the environment and preference using the Light Source Control by slider adjustment. There are 101 (0 – 100) luminance control steps that can be used to make fine adjustments to match the target luminance in the environment and on the screen.

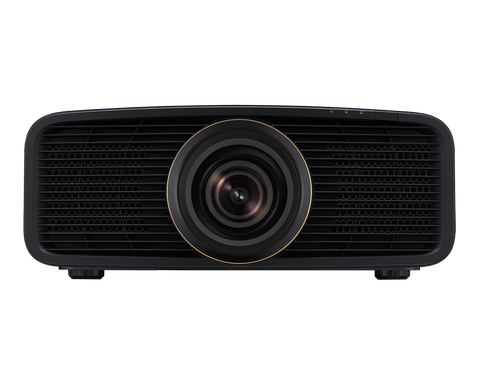

Fully electric (Zoom, Focus, Shift), with 70% vertical and 28% horizontal shifts for easy installation.

The Frame Adapt HDR function, which uses a proprietary algorithm to instantaneously analyze the maximum brightness of any HDR10 content per scene or frame and perform real-time tone mapping to optimal dynamic range for video projection, has evolved into the second generation (Gen2). The algorithm for tone mapping has been fully reexamined to achieve HDR images with higher definition. Furthermore, the proprietary algorithm for tone curve selection has also been improved to reproduce HDR images that are brighter, more colourful and have a wider dynamic range.

The new Deep Black Tone Control has been added to Frame Adapt HDR, with a new algorithm to further subdue tones in dark areas to achieve more realistic darkness. This function maximizes the dynamic range of the new-generation 4K D-ILA devices and delivers images with more contrast than ever before. Scenes with light and dark shades such as nightscapes can be projected with greater realism.

Vivid picture mode is a standard dynamic range (SDR) picture mode that reproduces content in rich colours. You can enjoy popular SDR video content, such as animation, in bright, rich colours and clear images.

All models are licensed with the ISF C3 (Certified Calibration Controls) mode, enabling trained dealers to professionally calibrate them to desired screen surfaces, lighting environments and video sources, and then securely store these precise settings into the projector.

Using an optical sensor and proprietary software*2, optimum calibration can be applied in just a few easy steps to match the changes in optical characteristics caused by the installation situation of the projector. Auto-calibration optimizes all essential elements found in the image, including colour balance, gamma characteristics, colour space, and colour tracking. In the past, multiple calibrations were required, but now it's possible to complete the calibration with a single calibration.

*2: An optical sensor and proprietary software, which is downloadable from the JVC website, are required to perform the auto calibration function. Refer to the JVC website for details.

These projectors are equipped with Installation Mode that allows users to centrally manage settings related to installation in order to enjoy projected video optimized for each environment. As shown in the graphical interface, eight settings for Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Setting, Installation Style, Keystone, and Aspect can be adjusted. Additionally, 5 different mode settings can be stored in memory and named as desired. Installation modes stored in memory for various environments can be called up immediately.

Screen Adjustment Mode is one of the nine Installation Modes described above. When the user selects a setting that best suits the screen being used from the Screen Adjustment Mode settings, the projector adjusts the image with the natural colour balance to match the screen. The model is compatible with the latest models offered by the world's major screen manufacturers.

These projectors feature the Digital Keystone Function. Digital Keystone adjusts keystone distortion that occurs when the projector is placed in a tilted position.

*: Digital Keystone Function cannot be used simultaneously. Keystone adjustment corrects only in the vertical direction.

A 2.35:1 aspect ratio for wide cinematic films can be enjoyed by combining the projector with a third-party anamorphic lens to create dynamic picture reproduction just as can be seen in a movie theatre.

The USB backup function can save and write settings on the main unit menu to a third-party USB flash drive all at once. It is important to save adjustments made by an installer or specialist or to undo unintended adjustments made by children or family members.
