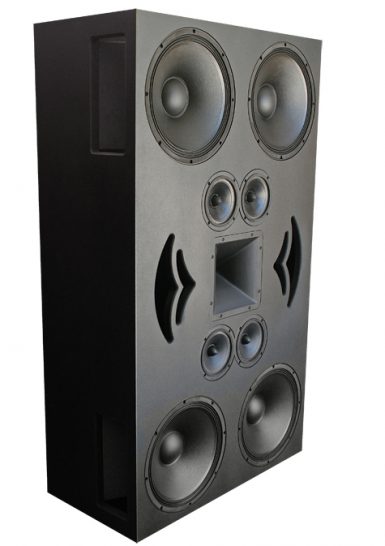

The Legacy doubleHelix is capable of high SPL audio of the highest quality while maintaining a controlled radiation pattern via DSP. This super speaker system was originally designed for L.A. Reid and Universal Music Group and is employed in the Michael Jackson Conference Center at SONY/Epic Studios in Manhattan.
Specifications:
- Applications: Main channels for theaters, clubs, auditoriums
- System Type: DSP steerable, 4 way system, includes internal amplification for midbass and dipolar bass, 4 way system
- Mounting: Fixed, portable or flown
- System Directivity: Cardioid, 45 degree vertically, 60 degrees horizontally
- Projection Distance: Up to 160 feet
- Tweeter: Compression horn
- Midrange: (4) 6.5" arrayed drivers with phase plug
- Midwoofer: (4) dipolar 15", 2 sealed 15" chamber loaded
- Subwoofer: mate with doubleHelix subwoofer
- Low Frequency Alignment: Dipolar + compression chamber
- Freq. Response (Hz, +/-3dB): 42- 20k with processor
- Sensitivity (Room, dB@ 2.83V): 107
- Crossover Freq. (Hz): 400, 800, 3K
- Inputs: 4 XLR balanced inputs
- Internal Amplification: (2) to (4) channels of 500 watt ICEpower® amplification
- Peak Output Current: 35 A per channel
- Idle Noise: 80 microvolts
- Output per channel: 500W @ 0.05% THD+N (1kHz, 4Ω)
- Amplifier Efficiency: 83% (250W, 8Ω)
- Protection Schemes: under-voltage, thermal, over-current, high frequency
- Idle Power: 3 watts/per module x 4
- Start-up: Soft start, mute/de-mute
- Dimensions (inches) HxWxD: 62 x 36 x 18
- Weight: 350 lbs each
