Thrilling & Immersive Home Audio Experiences & Unmatched Performance for the Price & We did it again With Our New 11 Channel Amp For $2250CDN

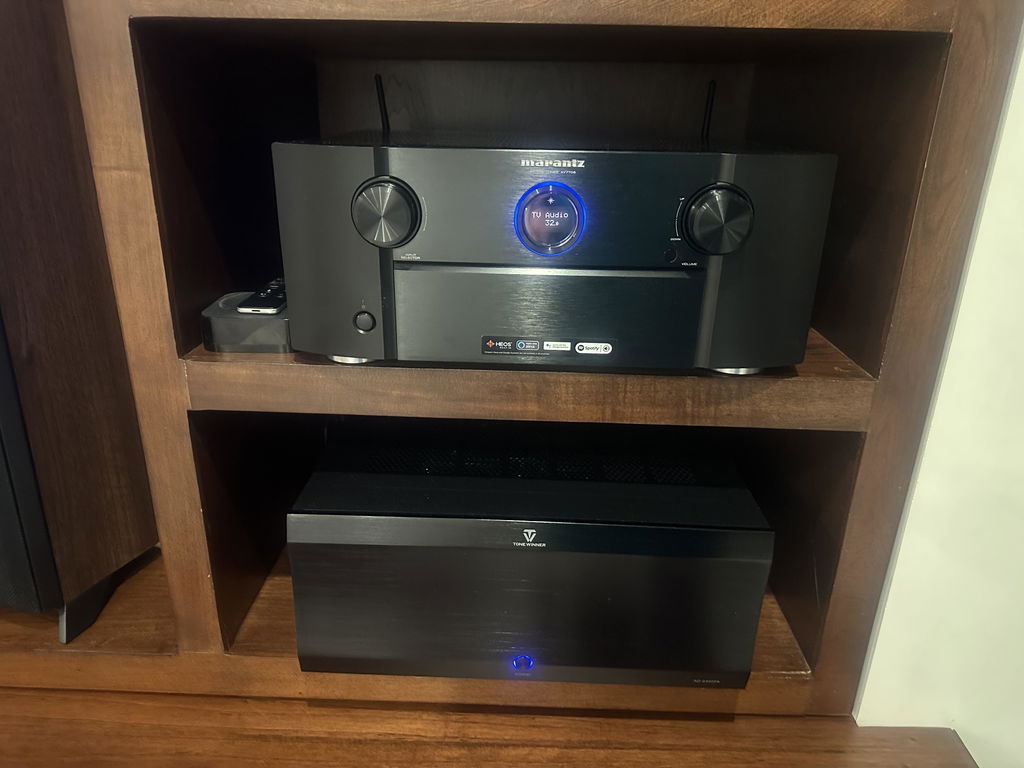

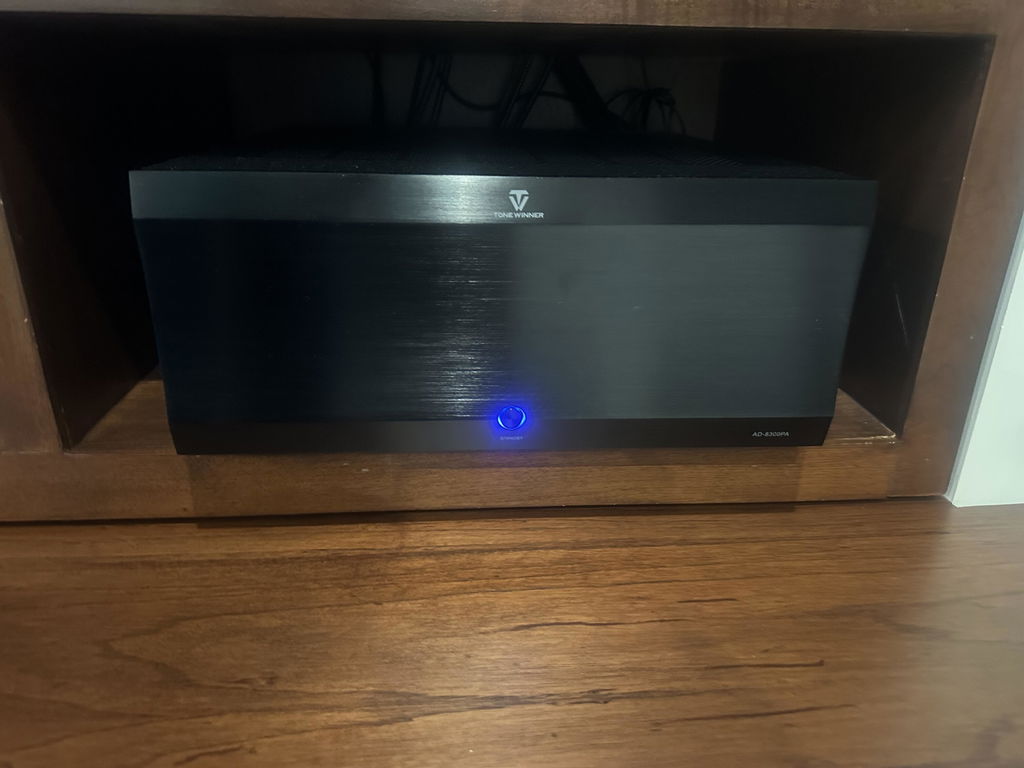

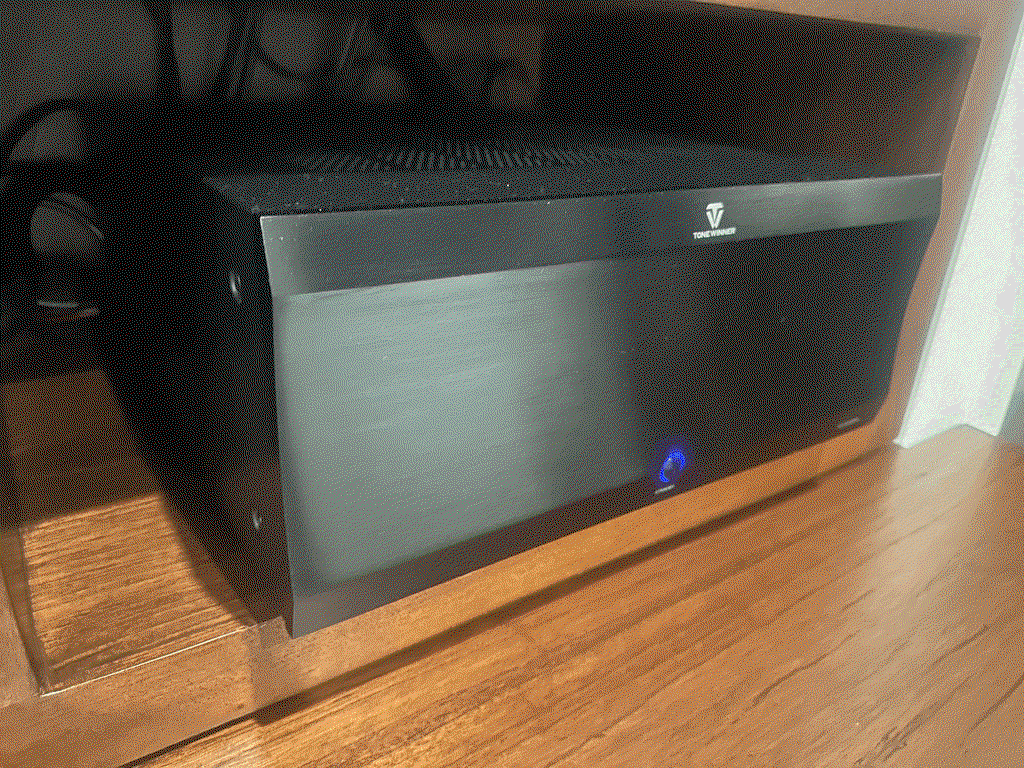

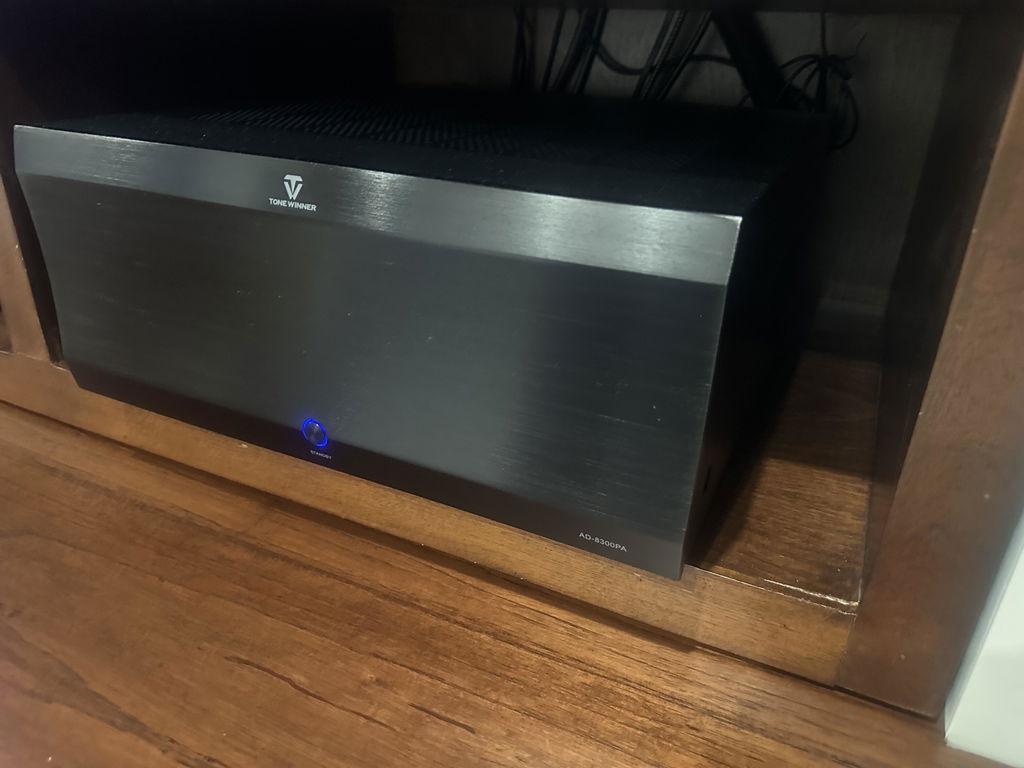

Step into the realm of unparalleled audio excellence with the Tonewinner AD-8300, an embodiment of cutting-edge technology and timeless design. As a leader in the audio industry, Tonewinner presents the AD-8300, as a testament to their commitment to delivering superior sound quality and uncompromising performance.
Model: AD-8300
Power Output:
- 3 x 300 WATTS & 8 x 155 WATTS @ 8 OHMS
- 3 x 605 WATTS & 8 x 276 WATTS @ 4 OHMS
The Tonewinner AD-8300 is not just an amplifier; it's an invitation to a transcendent auditory experience. Meticulously crafted, this amplifier is poised to elevate your listening encounters into realms of sonic magnificence.
Key Features:
- Advanced Audio Precision: Imbued with state-of-the-art audio circuitry and premium-grade components, this amplifier ensures accurate and faithful sound reproduction across the entire frequency spectrum.
- Sleek Sophistication: The AD-8300's sleek design seamlessly integrates with any environment, adding a touch of sophistication to your audio setup.
- Flexible Connectivity: Equipped with a range of input options, including RCA and balanced XLR inputs, the AD-8300 effortlessly connects to various audio sources for seamless integration.
- Precision Control: The amplifier provides meticulous control over your sound, enabling you to fine-tune audio nuances to match your preferences and your room's acoustics.
Whether immersing yourself in your favorite tunes, exploring cinematic landscapes, or relishing the intricacies of live performances, the Tonewinner AD-8300 ensures that every note, melody, and sonic effect is reproduced with breathtaking clarity and detail.
Circuit Topology
Fully modular audio power amplifier with a high-efficiency switch mode power supply (SMPS), independent, fully discrete, dual differential, high current, short signal path 150 Watts Class A/B amplifier modules, Optimized 300 Watts Class H amplifier modules, and microprocessor-controlled fault protection.Audio Specifications
AD8300 features three of our 300 Watts High-Powered Single Channel Modules & Eight 150 Watts Amplifier Modules.Audio Specifications (High-Powered Single Channel Modules): LCR Channels & Surround Channels
- LCR Channels 350 Watts & LS,RS,LBS,RBS 155 Watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven
- LCR Channels 605 Watts & LS,RS,LBS,RBS 276 Watts RMS/channel; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms; one channel driven
- LCR Channels 320 Watts & LS,RS,LBS,RBS 150 Watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; Two channel driven
- LCR Channels 516 Watts & Surround Modules 207+ Watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 4 Ohms; Two channel driven
- LCR Channels 240+ Watts & Surround Modules 105+ Watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; all channel driven
- Power Bandwidth (at rated power; 4 Ohm - 8 Ohm load): 10 Hz to 20 kHz (+ / – 0.1 dB)
- Broadband Frequency Response: 1 Hz to 89 kHz +0/-2 dB.THD + noise: < 0.009%; at 100 watts RMS; 1 kHz; 8 Ohms
- Signal to Noise Ratio (8 Ohm load):
- > 111 dB; ref FTC rated power; unbalanced input (A-weighted).
- > 86 dB; ref 1 watt; unbalanced input (A-weighted)
- Minimum Recommended Load Impedance (per channel): 4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads)
- Damping Factor (8 Ohm load): 141
- Gain: 29.3 dB
- Maximum Power Consumption: 2,540 watts.
- 2 Years Warranty
Input Impedance:
- 20 kOhms (balanced).
- 15 kOhms (unbalanced).
Input And Output Connections
- Input Connections (High-Powered independent L+C+R Channel Modules):
- L+C+R 3-way main channels selectable balance / unbalance inputs
- Input Connections (Independent Surround Channel Amplifier Modules):
- 8-way surround channels selectable balance / unbalance inputs
- Speaker Output Connections: Audiophile grade, gold plated, 11-way binding posts.
- Trigger Input: 5 – 12 V (AC or DC)
- Trigger Output: 12V DC
- Power Requirement Between 115V/230V @ 50 / 60 Hz (automatically detected).
Front Panel Controls and Indicators
- Standby: push button (halo ring changes color to indicate Standby or On)
- Status LEDs change to flashing red to indicate a fault condition.
Rear Panel Controls
- Over-current circuit breaker: press the button to reset the circuit breaker.
Protection :
-> AD-8300 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions.
-> The Amplifier has overheat protection, DC protection, short circuit protection, overload protection
-> For the high-frequency transformer used on the power supply: It has overheat protection, overload protection, short protection, over-voltage protection, and under voltage protection
-> Fan: The speed of the fan is determined by the temperature within the unit. At lower temperature, the fan will be off, When the temperature increases the fan will auto-detect and increase the speed to control the temperature of the unit
Dimensions:
