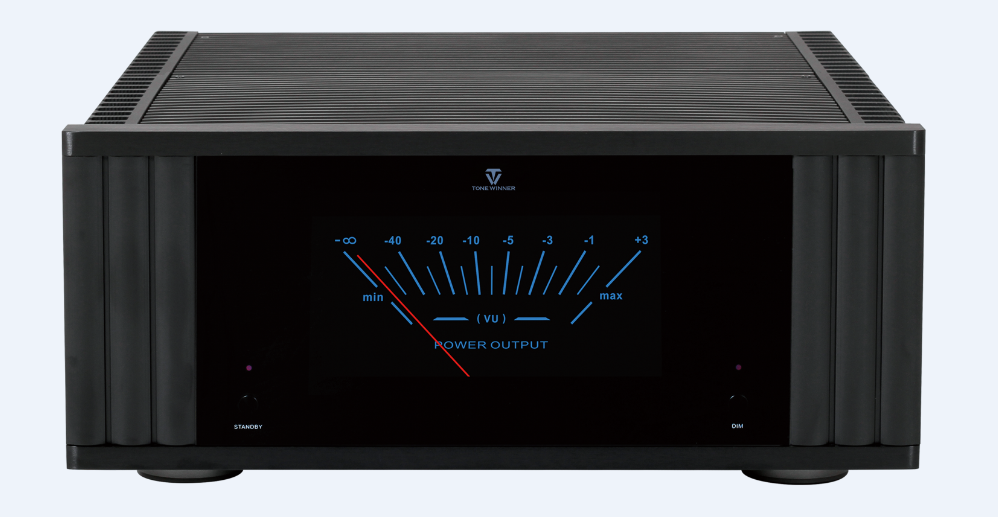

TW AD-7300 2.0 Version - 7 channel Amp 7X300W@8Ω

  • Sale
  • Regular price $1,899.00


The New Tone Winner AD-7300 2.0 Series Monster Amp - Available Now ! Oh Yessss With Free Shipping.


www.summithifi.com ( Canada )

www.summithifiusa.com ( USA )



Audio Specifications: 120 Volts Test Results:

  • Topology: Fully discrete, dual differential, high current, short signal path Class A/B - Class "H" power supply.
  • Numbers of Channel: 7 Channels - High powered single channel modules.
  • Power Output: ( Rated Power; THD <0.1% @ 120V (Tested @ AC 120V) - (AC 240V Will Increase the output wattage and maintain the THD<0.1%.)
  • 300 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven.
  • 507 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 4 Ohms; one channel driven.
  • 266 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven.
  • 434 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven.
  • 180 watts RMS/channel; THD<0.1%; 8 Ohms; all Seven channels driven.

Audio Specifications: 240 Volts Test Results:

  • Topology: Fully discrete, dual differential, high current, short signal path Class A/B - Class "H" power supply.
  • Numbers of Channel: 7 Channels - High powered single channel modules.
  • Power Output: ( Rated Power; THD <0.1% @ 240V (Tested @ AC 240V) - (AC 240V Will Increase the output wattage and maintain the THD<0.1%.)
  • 324 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven.
  • 584 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 4 Ohms; one channel driven.
  • 307 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven.
  • 500 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven.
  • 190+ watts RMS/channel; THD<0.1%; 8 Ohms; all Seven channels driven.


  • Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.1 dB).
  • Broad-Band Frequency Response: 10 Hz to 70 kHz +0/-2 dB.
  • THD + noise: < 0.006%; at 100 watts RMS; 1 kHz; 8 Ohms.
  • Signal to Noise Ratio (8 Ohm load):
  • > 106 dB; ref FTC rated power; unbalanced input (A-weighted).
  • > 91 dB; ref 1 watt; unbalanced input (A-weighted).
  • Minimum Recommended Load Impedance (per channel): 4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads).
  • Damping Factor (8 Ohm load): > 149.
  • Input Sensitivity (for rated power; 8 Ohm load): 1.5 V.
  • Gain: 28 dB.
  • Maximum Power Consumption: 2056 watts at 120V & 1128W at 240V
  • Power Supply: 110V-240V- 15 Amps-20 Amps Auto Switching Class "H"Power Supply.
  • Material: Aluminum
  • Modules: Separate Heatsinks for individual modules.
  • Color: Black
  • Front Panel: Analogue meter with blue LED lights and Red Needle.
  • G.W: 26.3KGS ( 57.98 Lb)
  • Unit size: 17.48 L X 17.32 W X 7.76 H Inches
  • Package size:22.52 L X 22.52 W X 12.64 H Inches
  • Accessories: 120 Volts - 15 Amp Power cord cable Included
  • Warranty: 2 years warranty

Customer Reviews

Based on 52 reviews
100%
(52)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Rusty Reeves
AD-7300 2.0 nice amp

Very nice amp so far.I really like the build quality,heavy aluminum.sound quality is clean and detailed.Aamir took me by surprise when he called just to make sure I was satisfied and had any questions. obviously he cares about his business and customers amazing service,thanks

Y
Yaakov
Skeptical until installed. WOW

I am running a 5.2.4 Dolby Atmos system with KEF Q series for my base level and Klipsch Reference for my heights. My AVR is a Denon X3700H. I had everything running off the receiver for around 6 months and while I was happy, the heat generated was absolutely insane. Fans kept the receiver from melting down but obviously it was being pushed to it limits, especially at louder volumes. My speakers range from 3.5ohm to 8ohm at sensitivities ranging from 87 to 91 and up to 200W. This is fine at quiet levels for the X3700H but at loud levels it was a huge workout for it; I could cook eggs on it I swear.

So I was reading about my Q950s and how the upper range really "opens up" or shines with quality continuous power. This intrigued me as I love sitting down and listening to music. While I was quite satisfied as things were for stereo listening, I just felt like some music (specifically rock) was a little flat sounding. So I thought YOLO and I started looking for power amplifiers.

After a few days of researching power amps I was set on buying a Monolith 5X. I wanted to support a small business if possible since I run one myself and I found Summit Hi-Fi. I called in to ask some questions about the Monolith 5X and Amir had mentioned that the TW 7300 was a ouch better deal. Since there was a money back guarantee I decided to give it a try. It took a few weeks to get to my remote location in Canada which was no big deal because I like to think great things are worth waiting for.

In the meantime I had posted some questions on Reddit about power amp benefits. Some people on their tried to crush my spirits by telling me I wasted my money and that this amp is a cheap Chinese product. Well my amp showed up and I've been running it for a few weeks now and wow were those guys so wrong.

This thing is a TANK and fits perfectly in any man cave. Looks great, makes my speakers sound great, stays cool, VU meter is nostalgic for me. I have nothing bad to say about this amp.

My Q950s while stereo listening came to life with all types of music, especially while listening loud. Distortion at higher levels went away and ear fatigue is less. I'm not making this up. I was already happy with my purchase at this point and then I decided to watch some UHD movies. At quiet-medium levels there isn't much of a difference but at higher volumes there is a very obvious difference. My KEF's came to life and I just can't describe how much happier I am. To finalize my opinion I watched one final movie - Mad Max: Fury Road. I had the house to myself so I made sure to turn it up nice and loud; just how I like it.

INSANE! That's all I can say. I drove my system hard for 2 hrs straight and the amp barely got warm. This thing is a true beast. Assuming it holds up for years to come this purchase was a perfect addition to my very deserving system. I feel like if you're spending $10k+ on a home theater what's another 2k to make sure it's the best it can be.

Thanks Amir!!

K
Kevin
Great Home Theatre Amplifier AD-7300 Version 2.0

I was looking for a 7 channel amplifier for my home theatre system. I looked into ones by Parasound, Anthem, Outlaw and Emotiva. I selected the ToneWinner based upon the price point, reviews, warranty and power output. I have only used it for a couple movies but I am very happy. Previously I was running two 2 channel amplifiers for the front and rear speakers. I am running a 7.2.4 system thru a Denon X3600H and Paradigm Monitor series speakers. I am leaving the Denon pre pro to handle the Dolby Atmos speakers which are infrequently used. And yes, being Canadian, I used hockey pucks under the feet to improve air circulation to avoid any heat issues. I am not sponsored nor an audiophile expert but I am very satisfied with my selection. Service was first rate from Summitt HI Fi and the delivery was quick. The box arrived in good condition and was double boxed and wrapped in plastic. Set up was easy and I personally like the big meter on the face and blue lights. I have dimmed the lights to the lowest setting and it not distracting. If you are on the fence, I suggest ordering now given the world wide semi conductor shortage.

L
Luis Diaz Cortes
10 stars

Very very good amplifier I’m so happy also very good customer service

A
AJ
TW AD-7300 7 Channel Amp rocks!

Also customer service from Amir is top notch and rocks! You will get rock ^2 nothing less. Thanks for the awesome product.
