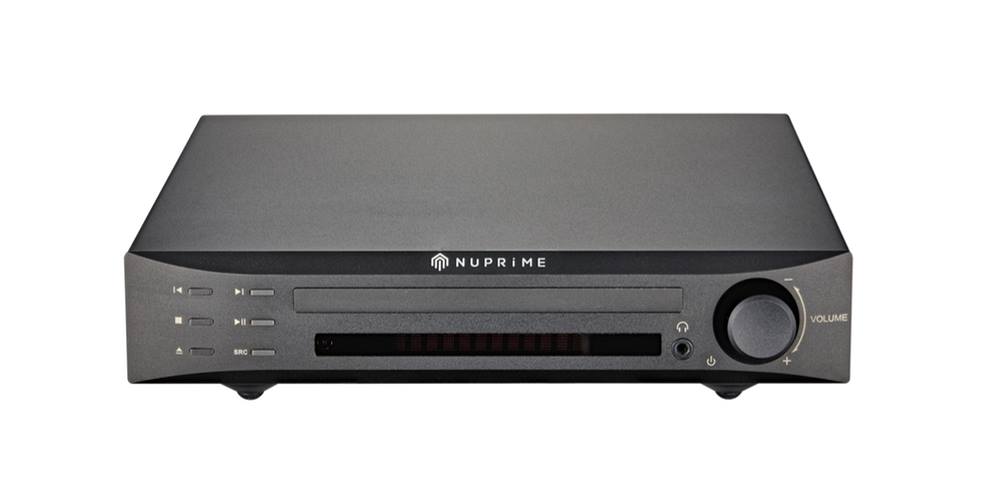

The NuPrime CDP-9 is a highly accurate CD player with an integrated high-end DAC and preamp. A powerful DSP-based decoder that provides all Red Book error-correction capabilities with master-clock control of the entire decoding system, thus lowering jitter significantly. The transport’s single speed minimizes vibration and unbalanced discs. The high-performance DAC, together with a selectable sampling rate converter for the digital output (up to 32bit/768kHz and DSD512) converts the CD format to either SPDIF at highest sampling rate or DSD format up to DSD512.

Features:

Highly Accurate CD Playback

•         – A powerful ARM chip LPC2103F CD reads, writes and controls error correction

•         – Philips SAA7824HL high-end laser reads/writes head control and decodes chips

•         – Supports CD-DA CD-R, CD-RW

•         – Algorithm reduces digital interference and jitter

A Reference Class Preamp

•         – Advanced, FPGA-implemented, switched-resistor ladder network for controlling volume with a single resistor in the signal path at any volume setting

•         – Individually adjustable volume on each input for precise source-level matching

•         – Volume adjustments in 99 precise 0.5dB increments. Full microprocessor control with memory retention

Sampling Rate Converter

•         – The sampling rate of any digital inputs, including CD playback, can be converted up or down between PCM and DSD, from 44.1kHz to 768kHz  or DSD64 to DSD512

        – The conversion is achieved by up-sampling to mega hertz before down converting to the targeted sampling rate with ultra-low jitter and distortion

Headphone Amp

•         – High performance op-amp headphone amp

Compatible OS

•         – Exclusive driver software for Windows

•         – Standard driver software for Mac

Power and Mechanical

•         – Low power consumption in Standby Mode

•         – Available in black or silver anodized aluminum finish

 SPECS:

• USB Sampling Rates: 44.1KHz, 48KHz, 88.2KHz, 96KHz,176.4KHz,192KHz, 352.8KHz, 384KHz     and DSD  2.8MHz(64), 5.6MHz(128), 11.2MHz(256)
• •Coaxial Sampling Rates: 44.1KHz, 48KHz, 88.2KHz, 96KHz,176.4KHz, 192KHz, 352.8KHZ, 384KHz, 705KHz, 768KHz, Dop64, Dop128, Dop256
• •Optical Sampling Rates: 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, Dop64
• •Bit Resolution: 16-32-bits
• •D/A THD+N: 0.0005%
• •D/A SNR > 120 dB
• •Frequency Response: 10Hz to 20KHz ± 0.3dB
• •CD THD+N: 0.003%
• •CD SNR > 114  dB
• • Headphone output power: 150 mW @ 1 kHz and 33 ohm load
• • Dimensions: 235 mm W x 281 mm D x 55 mm H (including feet)
• • Weight: 2.3Kg
• • Worldwide AC voltage: 100VAC~240VAC Adapter
